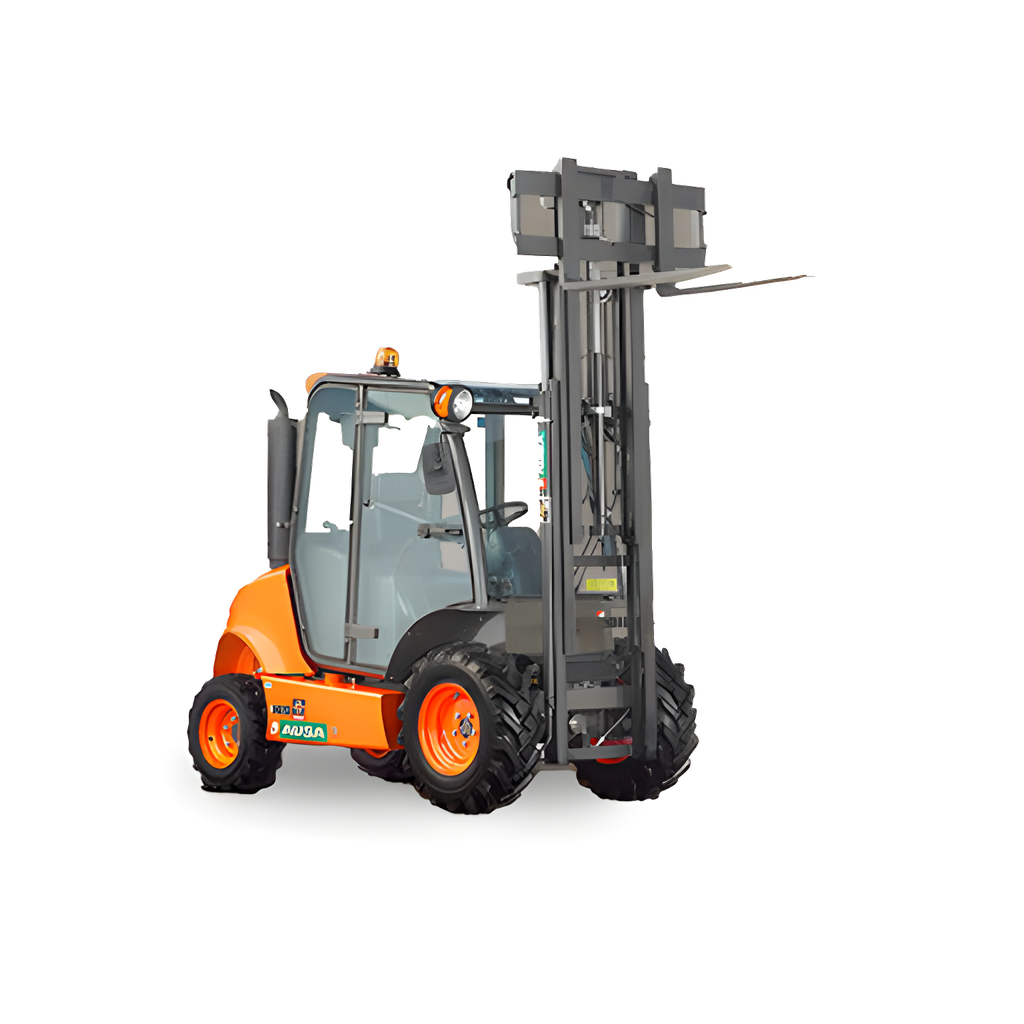

AUSA C501H X4 11000 lb fuel forklift

https://my.liftrac.ca/web/image/product.template/2805/image_1920?unique=9a8a379

AUSA C501H X4 11000 lb fuel forklift

Charge capacity : 5000 kg / 11023.1 lb
Empty weight : 7670 kg / 16909.7 lb
Maximum lift : 5450 mm / 17.88’

151,037.59 $ 151037.59 CAD 151,037.59 $

151,037.59 $

  • Service
  • Parking
  • Power
  • Model
  • Charge capacity
  • Empty weight
  • Transmission
  • Load capacity to 500 mm (20 in)
  • Load capacity to 600 mm (24 in)
  • Maximum lift
  • Torque
  • Number of cylinders
  • Emissions
  • Noise level (LwA)
  • Max. speed
  • Maximum gradient
  • Turning radius - outside
  • Traction
  • Tires
  • Hydraulic circuit
  • Flow rate
  • Working pressure
  • Fuel
  • Hydraulic system
  • Open FOPS cab
  • Semi-closed FOPS cab with front, rear and upper windscreens
  • Closed FOPS cab with heating
  • Tilting cab with assisted lift
  • Closed FOPS cab with heating and air conditioning
  • Acoustic warning for reverse gear
  • Emergency stop
  • Seat belt with fasten sensor
  • Seat with operator's presence sensor
  • LED rotating beacon
  • Hill Holder - hill-start assist
  • Negative brake
  • Blue Spot light
  • Joystick lock
  • Rear-view mirrors
  • Road lights with LED daylight
  • Front and rear LED working lights
  • Adjustable ergonomic seat
  • Extra comfort seat, fully adjustable
  • All-in-one joystick
  • Armrest
  • Steering wheel with adjustable tilt and reach
  • Hydrostatic transmission
  • AUSAnow fleet manager
  • Digital display
  • ECO Mode system
  • Inching pedal
  • Limited-slip differential on the front axle
  • Second-generation FullGrip® (4x4)
  • Reverse gear acoustic warning disable switch
  • Waterproof document holder
  • Water separator diesel filter
  • Air filter with cyclone pre-filter
  • Car radio
  • 4th valve for two-way action control
  • 1,000 h maintenance kit
  • Standard front and rear spare wheels
  • Fork carriage
  • Carriage width
  • 3.70 m duplex mast
  • 4.25 m triplex mast
  • 5.45 m triplex mast
  • 1,200 mm forks
  • Built-in side shifter
  • 1,660 mm load rest
  • 1,660 mm type FEM IV fork carriage
  • Brand

This combination does not exist.

Specifications

Brakes
Service Hydraulic, sealed, multi-disc
Parking Negative, sealed, multi-disc
Paramerters
Model 2024 or 2025
Power 55 kW
General
Charge capacity 5.00 t | 11023.10 lb
Empty weight 7.67 t | 16909.44 lb
Transmission Hydrostatic
Load capacity to 500 mm (20 in) 5.00 t | 11023.10 lb
Load capacity to 600 mm (24 in) -
Maximum lift 5.45 m | 17.88'
Engine
Torque 340@1600
Number of cylinders 4
Emissions Stage V
Noise level (LwA) 104 dB(A)
Driving
Max. speed 20 Km/h
Maximum gradient 35 %
Turning radius - outside 4.41 m | 14.47'
Traction 4x4 FullGrip
Tires 18-19.5 12-16.5
Hydraulic system
Hydraulic circuit Two gears pump
Flow rate 59 l/min
Working pressure 235 bar
Tank capacity
Fuel 117 l
Hydraulic system 114 l
Driving position
Open FOPS cab Available
Semi-closed FOPS cab with front, rear and upper windscreens Unavailable
Closed FOPS cab with heating Unavailable
Tilting cab with assisted lift Available
Closed FOPS cab with heating and air conditioning Unavailable
Safety
Acoustic warning for reverse gear Available
Emergency stop Available
Seat belt with fasten sensor Available
Seat with operator's presence sensor Available
LED rotating beacon Available
Hill Holder - hill-start assist Available
Negative brake Available
Blue Spot light Unavailable
Joystick lock Unavailable
Lighting and driving
Rear-view mirrors Available
Road lights with LED daylight Unavailable
Front and rear LED working lights Unavailable
Comfort
Adjustable ergonomic seat Available
Extra comfort seat, fully adjustable Unavailable
All-in-one joystick Available
Armrest Available
Steering wheel with adjustable tilt and reach Available
Advanced equipment
Hydrostatic transmission Available
AUSAnow fleet manager Unavailable
Digital display Available
ECO Mode system Available
Inching pedal Available
Limited-slip differential on the front axle Available
Second-generation FullGrip® (4x4) Available
Accessories
Reverse gear acoustic warning disable switch Unavailable
Waterproof document holder Unavailable
Water separator diesel filter Available
Air filter with cyclone pre-filter Unavailable
Car radio Unavailable
4th valve for two-way action control Unavailable
Parts
1,000 h maintenance kit Unavailable
Standard front and rear spare wheels Unavailable
Mast
Fork carriage FEM 4
Carriage width 1.66 m | 5.45'
Masts
3.70 m duplex mast Available
4.25 m triplex mast Unavailable
5.45 m triplex mast Unavailable
Forks
1,200 mm forks Available
Built-in side shifter Available
1,660 mm load rest Unavailable
1,660 mm type FEM IV fork carriage Available
Uncategorized
Brand Deutz
